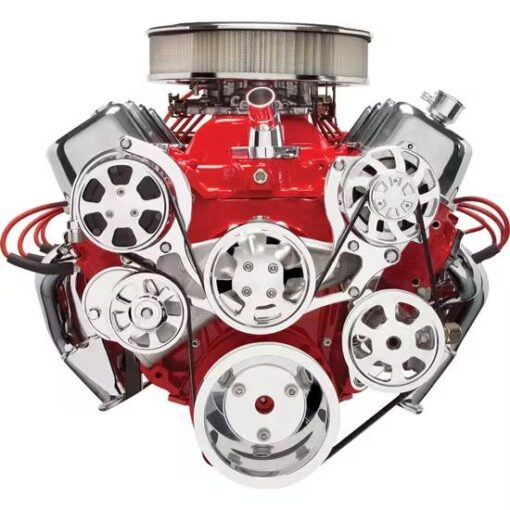

Billet Specialties 14220 Tru Trac Serpentine Systems – B/B Chevy

$2,500.00

Artikelnummer: 5af90dd8baa3 Categorie: Uncategorized

Beschrijving

Product Summary

396, 402, 427, 454, 496, 502

Specifically designed for the Big Block Chevy engines
Comes with all attaching hardware and a comprehensive installation manual
All pulleys and brackets completely polished for a great finishing touch
Includes a Goodyear Gatorback 6-rib serpentine belt and polished ARP 12-point stainless steel hardware
The Powermaster 1-wire alternator produces up to 105 amps and is polished to a show-like finish

Details

Billet Specialties Tru Trac serpentine systems for Big Block Chevy come complete with all attaching hardware and a comprehensive installation manual.

Polished 105 amp Powermaster 1-wire alternator
Cast finish Edelbrock reverse rotation water pump
Polished Sanden SD-7 compressor
Cast finish Maval power steering pump w/ AN fittings
All pulleys and brackets completely polished
Polished ARP 12-point stainless steel hardware
Goodyear Gatorback 6-rib serpentine belt
Works with ‘standard’ and ‘tall-deck’ Chevy Big Block application (excluding aftermarket tall-deck big blocks that have ‘raised’ camshaft).

Note: Requires the use of a remote power steering fluid reservoir. Vehicles that use front style motor mounts must be converted to side motor mounts when using the Tru Trac system.

Charts

910-13222 Instructions (PDF)

Specs

Distance from face of:
- Crank Pulley = 6.375″ (from block)
- Water Pump Pulley Nose Cone = 7.125″ (from block)
- Alternator Pulley Nose Cone = 6.625″ (from block)
- Power Steering Pulley = 6.437″ (from block)
- AC Clutch Cover Nose = 7.562″ (from block)
