MILLER MULTIMATIC 220 AC/DC WELDER + SPECTRUM 375 PLASMA CUTTER (907757, 907529)

Auto-Set Elite fast and easy predefined settings for multiple materials and processes to help you get welding quickly.
• Available for all processes (MIG, stick, AC TIG, DC TIG) with the ability to fine-tune your settings.
• Set weld parameters by selecting:
MIG – wire diameter and material thickness
Stick – electrode type, diameter and material thickness
AC/DC TIG – tungsten diameter and material thicknessPro-Set (TIG and stick manual modes)
Pro-set eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set appears on the display and the number turns blue.
• AC Balance (AC TIG)—controls the cleaning action (Pro-Set 75%)
• AC Frequency (AC TIG)—controls the width of the arc cone (Pro-Set 120 Hz) • Pulse (DC TIG)—helps focus the arc for increased stability, penetration and travel speed (Pro-Set 100 Hz)
• DIG (Stick)—lets you tailor arc characteristics for a wide range of applications (Pro-Set 30% 7018 electrodes)Robust, angled wire drive with Quick Select drive roll for easily changing one wire type/diameter to another. Quick Select drive roll offers three grooves; two for different size solid wires and a third for flux-cored wire.

Two shielding gas connections so both gases can be left connected to the machine; no switching needed. One connection for MIG gas and one for TIG gas.

Easy-to-understand interface with 3.5-inch color LCD display and intuitive connection setup images.

Weighing only 56 pounds, the Multimatic 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

Operates on 120-volt or 240-volt power letting you work virtually anywhere. Multi-voltage plug (MVP) easily connects to common 120-volt or 240-volt power outlets (no tools required to change). Choose the plug that fits the receptacle and connect it to the power cord.

14-pin controlled operator alternatives
The standard 14-pin connector on your Multimatic 220 AC/DC lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

Wide range of TIG adjustability.
• AC Balance – adjustable from 60–80%
• AC Frequency – adjustable from 60–150 Hz
• DC Pulse – adjustable from Off–150 pulses per second (PPS)
• TIG Post-Flow – adjustable from Auto–25 seconds (accessible through service menu screen 12)
• Lift-Arc and high-frequency starts
• Tungsten size selection

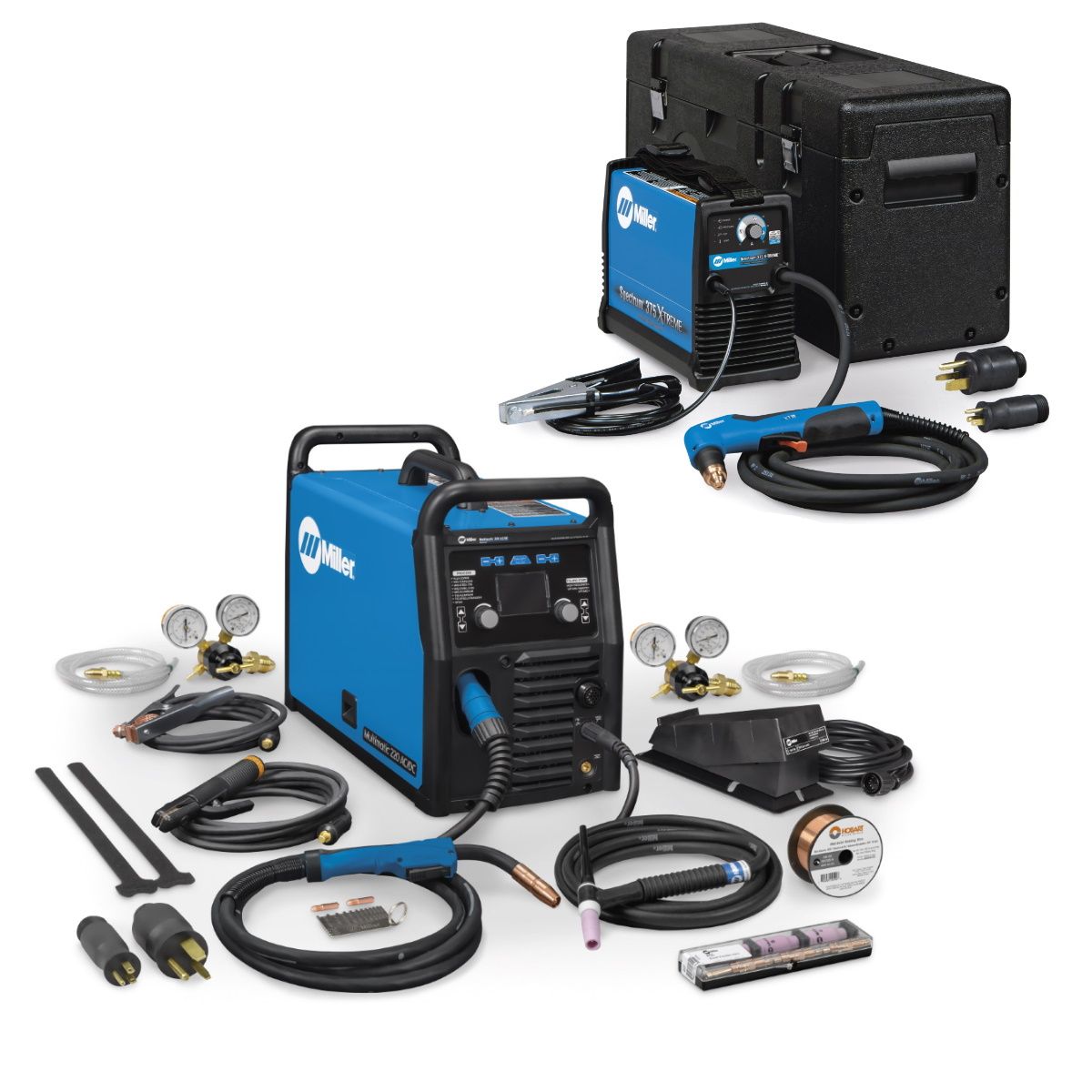

Multimatic 220 Comes complete with:
• Power source (907757)
• 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
• 10 ft. (3 m) MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft. (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
• RFCS-14 HD foot control with 20 ft. (6 m) cord
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• Two flow gauge regulators and gas hoses for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge (229895)
• Hook-and-loop cord wraps

Spectrum 375 comes with
• Spectrum 375 X-treme power source
• 12 ft XT30 hand torch
• Heavy-duty work clamp with 12 ft flexible cable
• 10 ft power cord with MVP plugs (120V, 240V)
• X-Case
• Consumables box with 2 electrodes, 2 tips, deflector, and air fitting

More Information

Brand	Miller
SKU	IMIL20230002
MPN	MIL907757-907529
Mfgs MPN	907757
UPC	715959669276
Prop65	Yes
Process	Flux Cored (FCAW), MIG, Stick, TIG
Phase	Single Phase
Manufacturer’s Warranty	3 Years
Polarity	AC/DC
Skill Level	Beginner, Weekend Warrior, Career Welder
Discontinued Product	No
