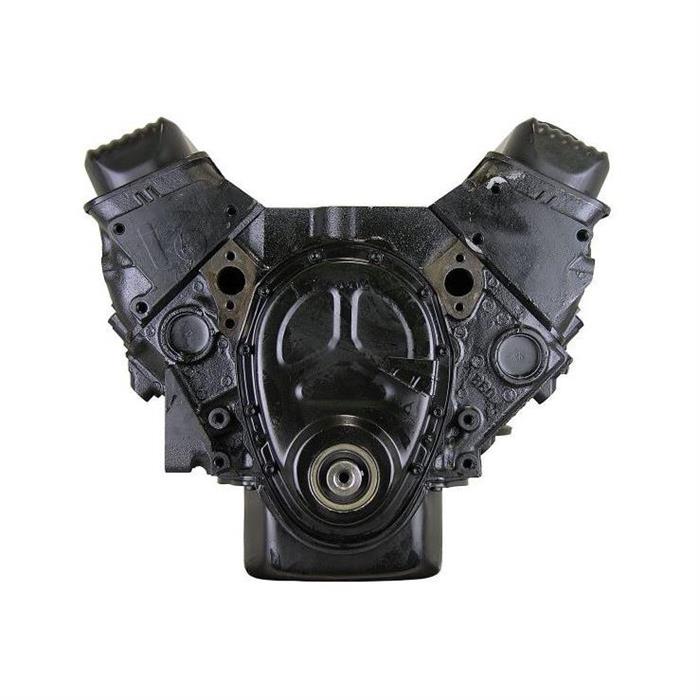

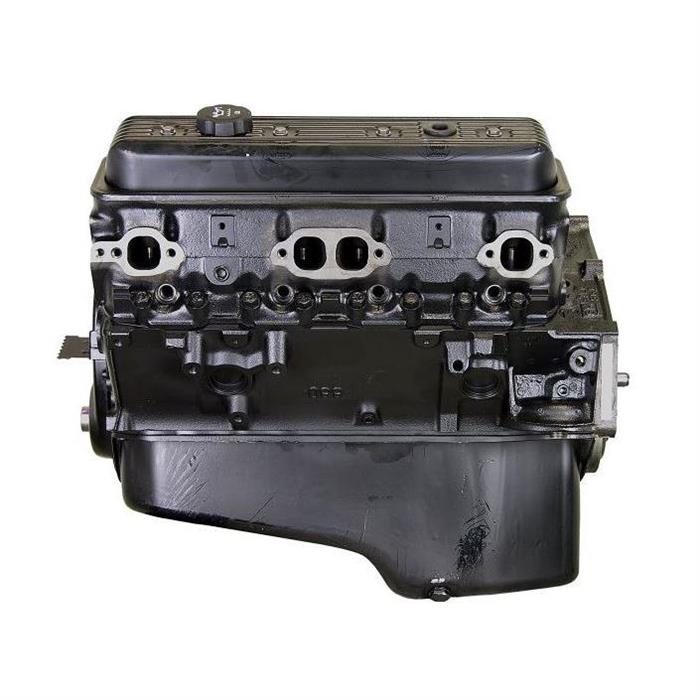

ATK Engines VCM5 87-95 Remanufactured Long Block 350 Crate Engine

Remanufactured Engines are fully disassembled; heads, blocks, cranks & cams are machined & wear parts are replaced. Each engine is individually tested after assembly to assure compression, oil pressure and water jacket integrity. Your remanufactured engine is tested in several specific ways after being assembled; Multiple Pressure tests. Each component is carefully checked after being cleaned to see if cracks or other defects exist in the casting. After being assembled, we pressurize the water jacket with 30lbs. of air pressure. As a result of these tests, you can be sure your unit will not have coolant leaks. SIM test, After pressure testing, our final check of engine performance is a spin test. We turn the engine at 400 RPM with oil pressure lines attached. The test measures compression on each cylinder, oil pressure, oil flow and allows an easy visual check that oil is reaching all critical areas. This test also allows the rear main seal to be checked for leaks. We produce most engines as long block assemblies that ship with a finishing gasket set and a new oil pump. We also produce many of the most popular engines as dressed alternatives. These engines save installer’s time and money as they come complete with oil pan and/or front cover and in some cases valve covers already installed. ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.

Highlights

• With Valve Covers, Timing Cover & Oil Pan, Up to 8500 GVW ONLY
• 4 Bolt Mains, 1 Piece Rear Seal
• V/C Bolts through Center of Cover

Specifications

• Crate Engine Type: Long Block
• Engine Displacement: 350 cu. in.
• Camshaft Type: Hydraulic Roller
• Camshaft Duration (.050 in): 220° intake / 224° exhaust
• Camshaft Lift (in): .414 Intake / .428 Exhaust
• Bore x Stroke (in): 4.040" x 3.480"
• Carburetor Included: No
• Intake Manifold Included: No
• Distributor Included: No
• Valve Covers Included: No
• Engine Balance: Internal
• Cylinder Heads Included: No
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Brand: ATK Engines
