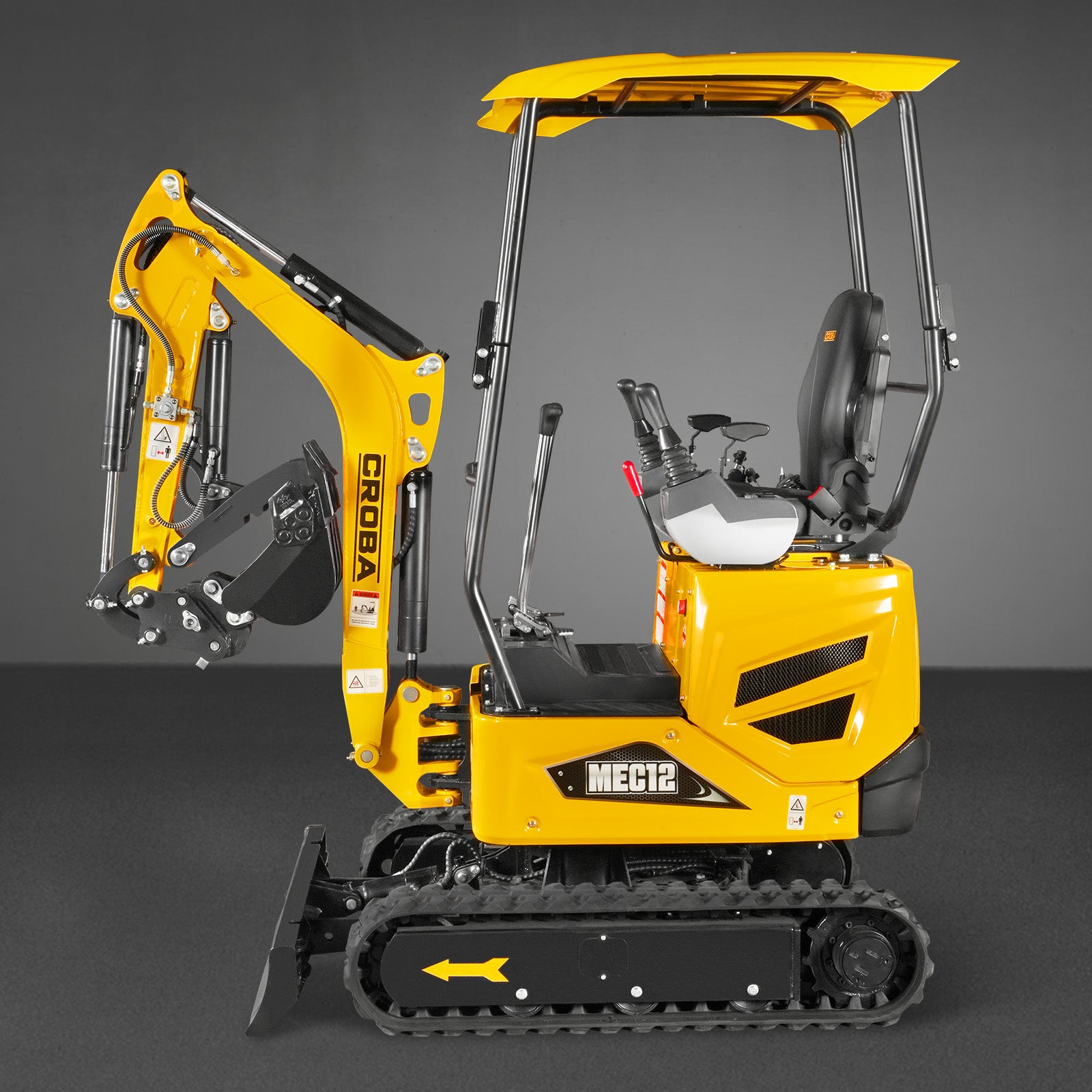

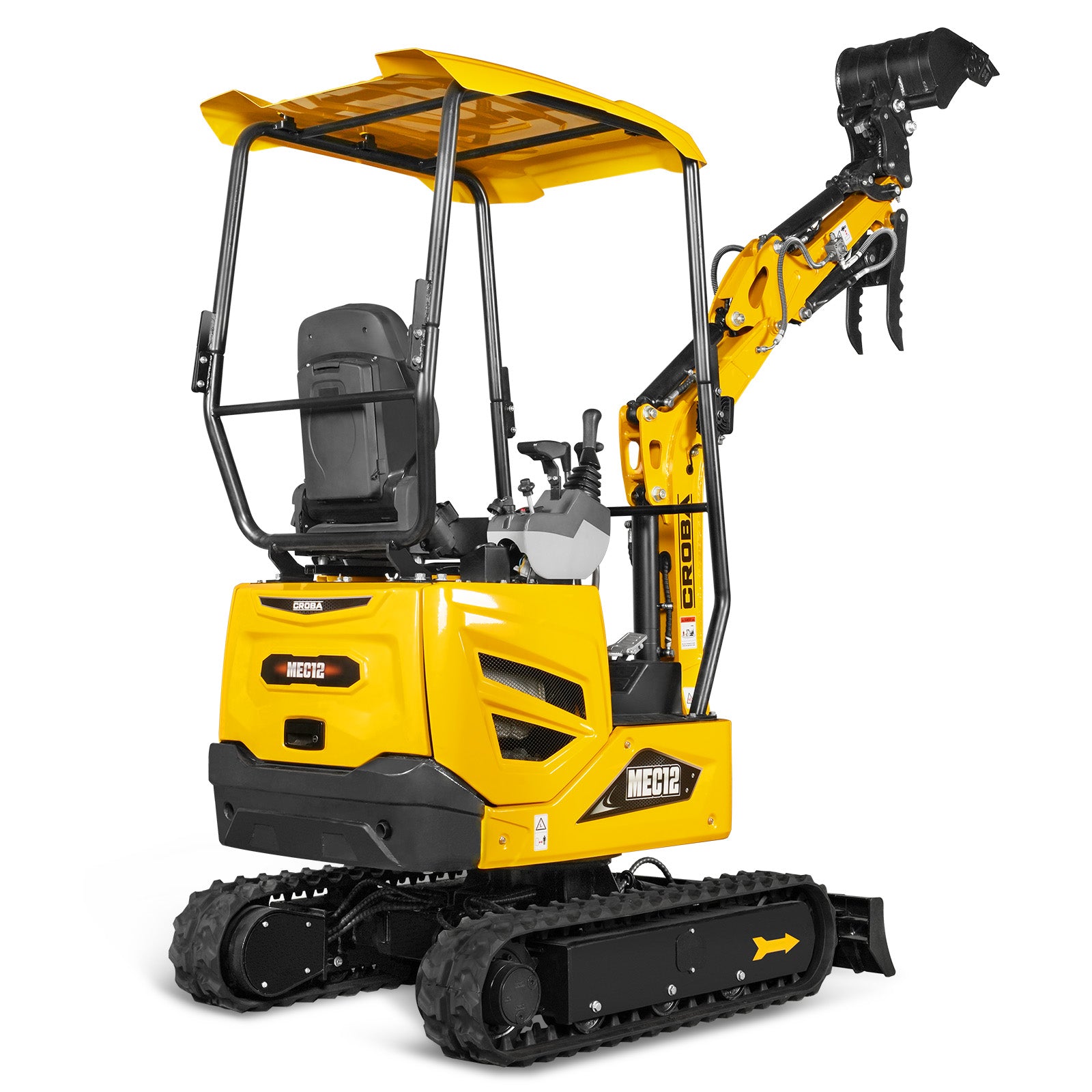

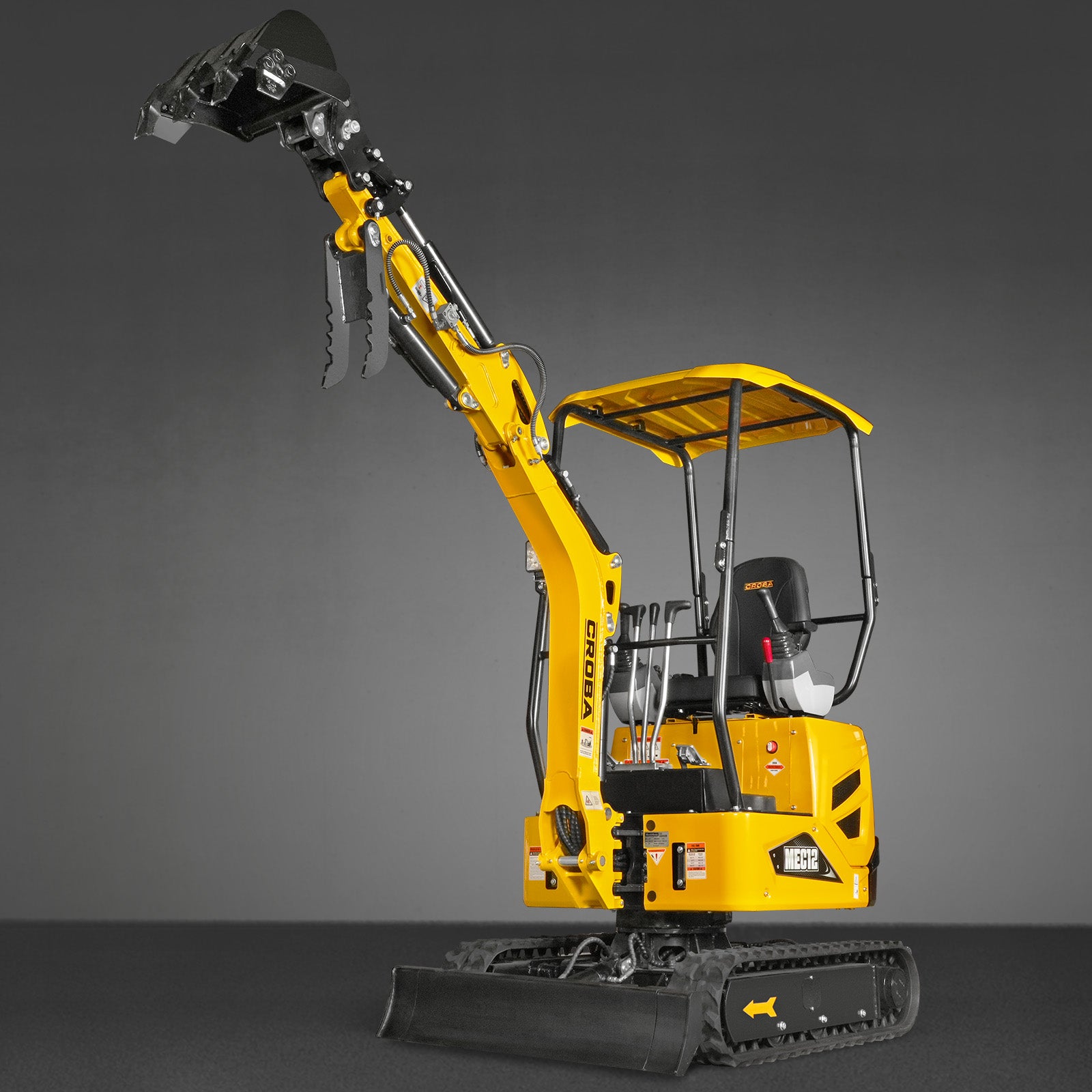

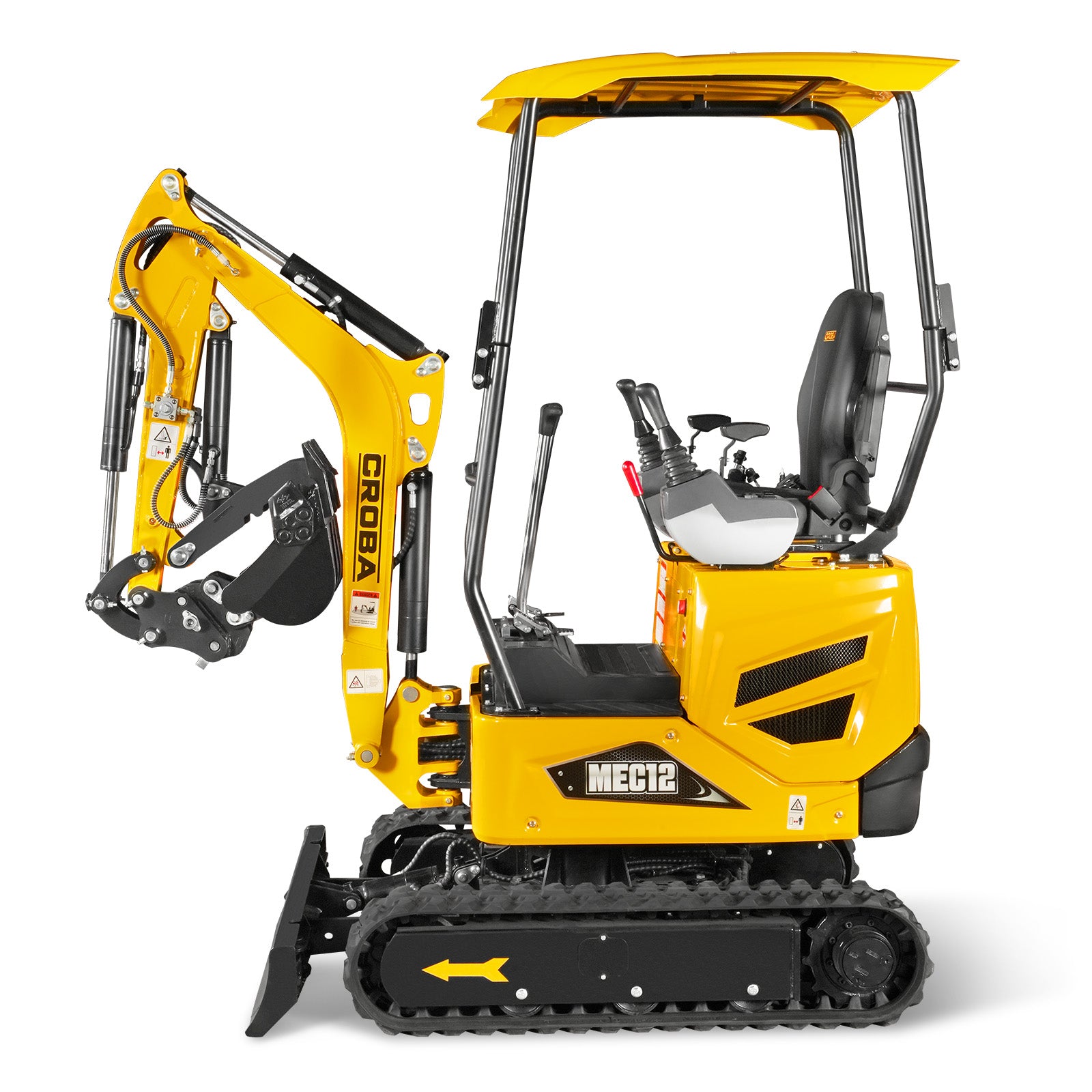

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 2

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 3

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 4

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 5

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 6

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 7

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 8

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 9

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 10

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 11

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 12

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 13

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 14

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 15

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 16

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 17

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 18

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 19

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 20

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 21

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 22

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 23

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 24

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 25

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 26

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 27

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 28

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 29

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 30

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 31

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 32

Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12 - Image 33

Mini Compact Excavator Kubota D722 Engine, 65.7″ Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12

Name: Mini Compact Excavator Kubota D722 Engine, 65.7" Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12
SKU: 72d4a39157ef
Price: 16999.00 USD
Availability: InStock

$16,999.00

ENGINE Model Kubota D722 Rated speed 2500rpm No.Of Cylinders 3 Displacement 43.88in³ Stroke 2.68in Engine Output 13.7hp Bore 2.64in Warranty for Engine 2-Year TRAVEL SYSTEM Travel Speed – High 2.24 mile/h Ground Clearance 15.9in Travel Speed – Low 1.12 mile/h Ground Pressure 5.1psi Maximum Traction Force – Low Speed 2923lbf Gradeability – Maximum Maximum 30 degrees WEIGHT Operating Weight 2700lb HYDRAULIC SYSTEM Type Load Sensing Hydraulics with

SKU: 72d4a39157ef Category: Mini Excavator & Attachments > Mini Excavator

Description

ENGINE
Model	Kubota D722	Rated speed	2500rpm
No.Of Cylinders	3	Displacement	43.88in³
Stroke	2.68in	Engine Output	13.7hp
Bore	2.64in	Warranty for Engine	2-Year
TRAVEL SYSTEM
Travel Speed – High	2.24 mile/h	Ground Clearance	15.9in
Travel Speed – Low	1.12 mile/h	Ground Pressure	5.1psi
Maximum Traction Force – Low Speed	2923lbf	Gradeability – Maximum	Maximum 30 degrees
WEIGHT
Operating Weight	2700lb
HYDRAULIC SYSTEM
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump	Max.Discharge Flow	4.65 gpm
SWING SYSTEM
Swing Speed	8rpm	Tail Swing Radius	48.1in
DIGGING FORCE（ISO6015)
Boom Length	52in	Bucket Digging Force	1960lbf
Arm length	35in	Arm Digging Force	875lbf
REFILING CAPACITIES & LUBRICATIONS

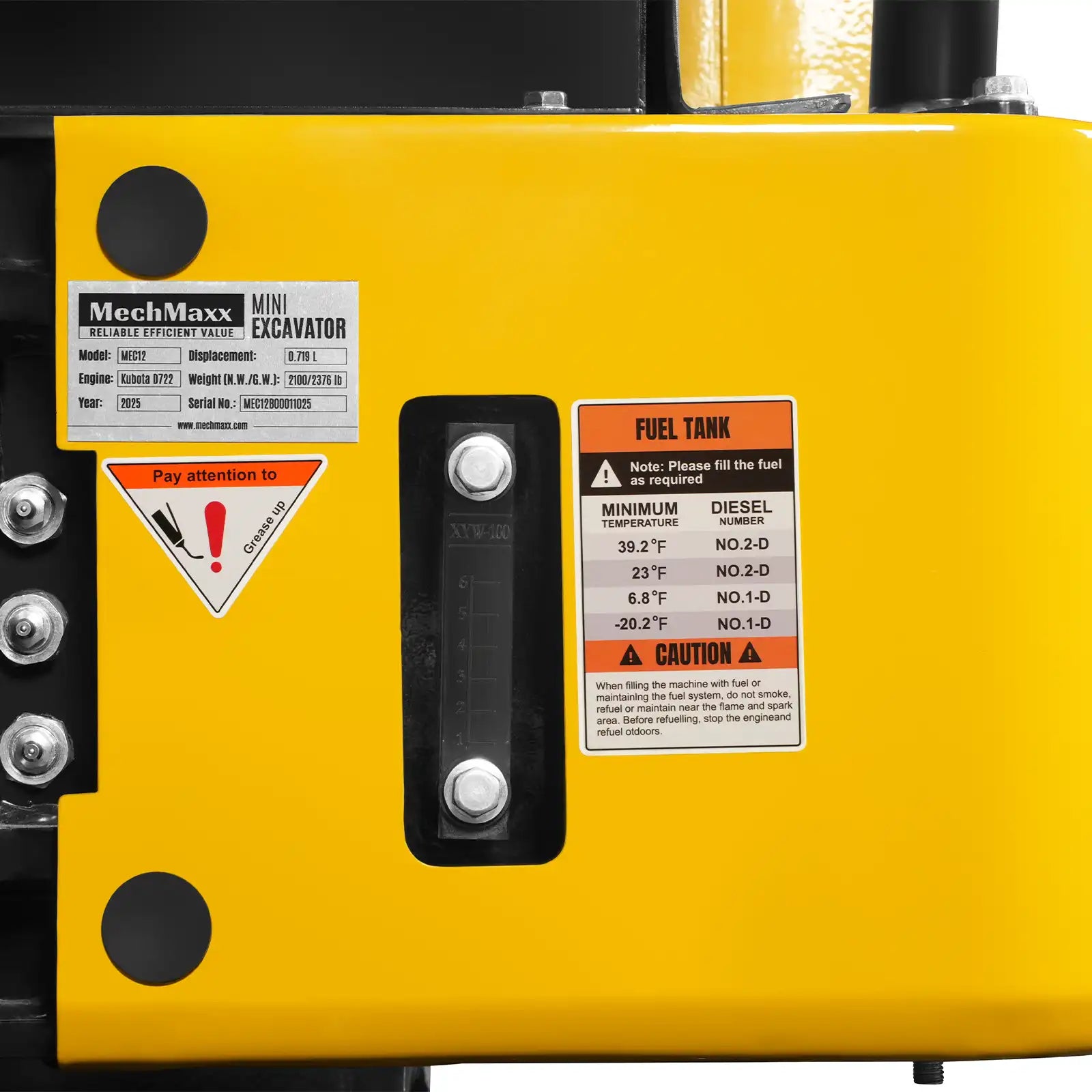

Fuel Tank	2.4gal	Hydraulic Oil Tank	3.2gal
Cooling System	1.1gal	System Capacity	4.8gal
Engine Oil	0.7gal
BUCKET
Bucket Capacity	0.7 ft³	Bucket Width	15 in
SCOPE OF WORK
Max.Digging Height	111.2in	Min Turning Radius Of Working Device	48.1in
Max.Dumping Height	81.1in	Max. Lift Above Ground	5.5in
Max.Digging Depth	65.7in	Max. Drop Below Ground	8.9in
Max.Vertical Digging Depth	62.6in	Boom Swing – Left	53°
Max Digging Radius	119in	Boom Swing – Right	40°
Max.digging Radius At Ground Level	118.7in
DIMENSIONS
Transportation Length	92.4in/114.8in	Crawler Wheel Base	42.5in
Overall Width （Retracted/Expanded)	42.7 in	Track Belt/Shoe Width	7in
Overall Height（To Top Of Cab）	89.5in	Track Length	55.5in
Counter Weight Ground Clearance	16.7in	Track Width（Retracted/Expanded)	34.6 in/42.7 in
Ground Clearance	15.9in
SERVICE
Package Method	Wood Case	Warranty for Machine	1 Year
Packing Size	91x40x98 in	Weight (N.W./G.W.)	2700/2978 lb

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.

Mini Compact Excavator Kubota D722 Engine, 65.7″ Max. Digging Depth, 1.2 Ton, 2700 LBS Operating Weight, MEC12
