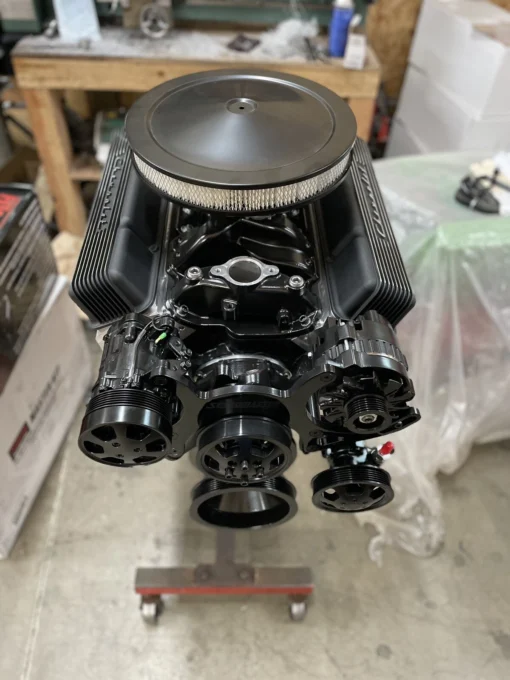

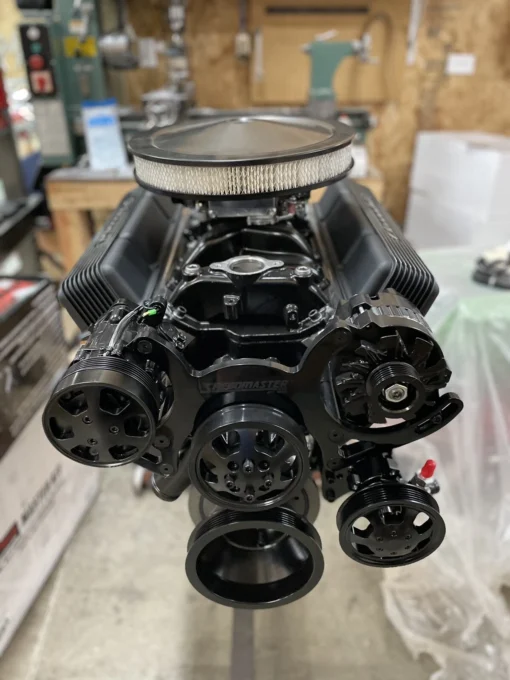

383R ProStreet Stroker Crate Engine

Key Specifications

• Displacement: 383 cubic inch Small Block Chevy (SBC)
• Horsepower: ~508 HP dyno proven
• Bottom End: Forged crankshaft, H-beam rods, forged pistons
• Top End: CNC aluminum heads, hydraulic roller cam, hi-rise intake
• Fuel Options: EFI or carbureted setup available
• Accessories: A/C ready, alternator & power steering provisions
• Configurations: Short-block, long-block, or turnkey crate engine

    Performance Internal Parts

• CUSTOM keith black/silvolite LIGHT WEIGHT  10 to 1 piston set (runs on pump gas)

• NEW STD STD Scat 3.75 steel crank with superior wear sized and indexed.

• FORGED  5.7″ steel rods

• File Fit Rings…  (IS REQUIRED for the ultimate in ring sealing making more power…

• cam bearings…

• King Race series bearings  std -std rod and main…

• Custom HYDRULIC TRICK FLOW series high output cam lifter set  ..

• double roller set…

• chrome moly  pushrods

• HP – oil pump…

• Hi Performance pickup…

• steel drive…

• oil pan.

• After market – aluminum timing cover…

• pioneer head bolts…

•  rocker studs

– gasket sets…   – TOTAL PARTS YOU COULD SPEND BUILDING YOURSELF plus heads and rockers =10,300

◦ Aluminum Heads Features –  – -severe duty 2.02/1.60 valves plus …  1.45  springs 10  degree super locks comp cam parts.. 7/16 studs guide plates. gasket match p.c seals. chrome molly retainers,with mild port work these heads are better than ANY OUT BOX HEADS YOU COULD PUT ON FROM SAME MANUFACTURE

Hi performance roller rockers … (not the cheap stock stamp steel)

Features – awesome power  range 2000-6500 WE RECOMMEND A 2000-2500 stall.   lopey muscle car idle.

streetable and will run vacuum access
