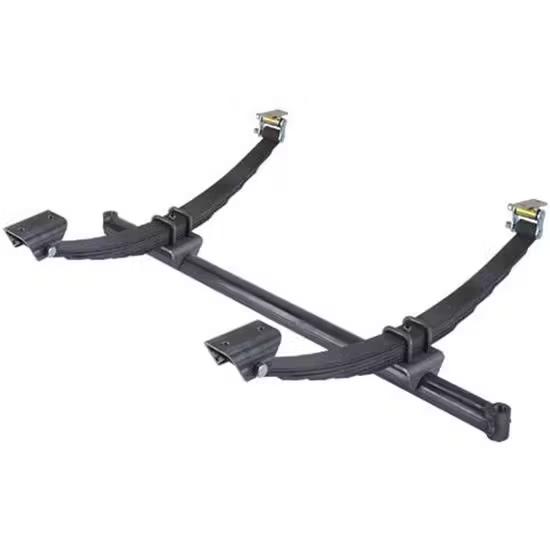

Name: 46 Inch Chevy Universal Straight Axle Kit, Semi-Elliptical/Gasser
SKU: a60204870f2b
Price: 400.00 USD
Availability: InStock

Product Summary

Universal Fit, Straight Axle Front Suspension Type

Specially designed for use with Elevemotors 1949-54 Chevy-style passenger car spindles
They are professionally engineered and made from plain steel
Spring pads are adjustable on the axle for different frame widths
Available in several axel widths or even a custom width to suit your project perfectly!
The tube axles with welded ends have a 0.250″ wall

Installation Tips !

Tie Rod Length Needed (using flat plate steering arms):

44″ Axle – 41.5″ eye-to-eye link
46″ Axle – 43.5″ eye-to-eye link
48″ Axle – 45.5″ eye-to-eye link
50″ Axle – 47.5″ eye-to-eye link

Details

If you are looking for that “up in the front” gasser look or just need a straight axle, weve got your deal! We can supply you a complete semi-elliptical straight axle front end kit with springs and hardware. Designed for use with Elevemotors 1949-54 Chevy-style passenger car spindles.

Plain steel, universal application, professionally engineered. The spring pads are adjustable on the axle for different frame widths (welding required). Choose axle length from kingpin to kingpin, or order a custom length.

Kit includes:

tube axle w/ welded ends (0.250″ wall tubing)
two axle pads and U-bolts
two 1-3/4″ spring shackles w/ nylon bushings
two frame mounting brackets
two 32″ six-leaf springs
all hardware

Item Details

For custom width axle, specify length in comments section of shopping cart at static.

Not For Off-Road Race Use

Charts

916-3903 Instructions (PDF)
Gasser Build Info (PDF)

Specs

Spring Arch: 4-3/4″
Total Leaves: 6 (each 1/4″ thick)
Spring Rate: 400 lbs/inch
Axle Tube: 2.00″ O.D.

KEY SPECS
MFG. Part #	91639036-46
Brand	Elevemotors Motors
Front Suspension Type	Straight Axle
Suspension Height Adjustment	Stock Height
Control Arm Style	Not Included
Shock Type	Not Included
Spring Type	Leaf Spring
Finish	Natural
Bolt Pattern	Not Applicable
Rotor Diameter	Not Included
Spindle Style	Chevy/GM Stock
Dropped Spindles	No
Dropped Axle	No
Dropped Control Arms	No
Front Leaf Spring Style	Semi-Elliptical Gasser
Spindles Included	No
Steering Included	No
Welding Required	Yes
