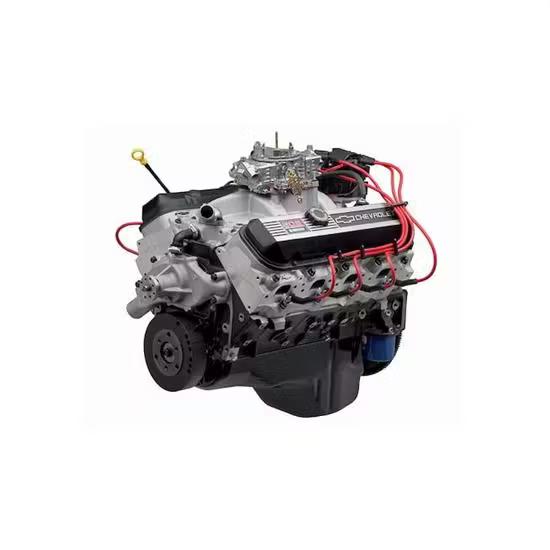

Chevrolet Performance 19433162 ZZ502/502 Deluxe B/B Crate Engine

$10,453.27

SKU: ba7aa124c499 Category: Uncategorized

Description

Product Summary

502, Long Block Crate Engine Type, Carburetor Included

Chevrolet Performance Parts ZZ502/502 Deluxe Big Block Crate Engine
High-flow aluminum oval-port cylinder heads
2.25/1.88-inch valves and a hydraulic roller camshaft designed to support low-rpm torque production
Topping 500 lb.-ft. mark by approximately 2,500 rpm
Proven performance suitable for the street or strip

Details

Chevrolet Performance Parts ZZ502/502 Deluxe Big Block Crate Engine
High-flow aluminum oval-port cylinder heads
2.25/1.88-inch valves and a hydraulic roller camshaft designed to support low-rpm torque production
Topping 500 lb.-ft. mark by approximately 2,500 rpm
Proven performance suitable for the street or strip

ZZ502-502 Deluxe Tech Specs

Part Number: 19331579
Displacement (cu. in.): 502
Bore x Stroke (in.): 4.470 x 4.000
Block: Cast-iron with four-bolt main caps
Crankshaft: Forged steel
Connecting Rods: Forged steel, shot peened
Pistons: Forged aluminum
Camshaft Type: Hydraulic roller
Camshaft Lift (in.): .527 intake / .544 exhaust
Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
Cylinder Heads: Aluminum oval port; 110-cc chambers
Valve Size (in.): 2.250 intake / 1.880 exhaust; stainless steel
Compression Ratio: 9.6:1
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.7:1
Distributor: HEI type
Carburetor: 870-cfm
Water Pump: Aluminum, short-style
Spark Plugs and Wires: Included
Starter: Included
Flexplate: 14″
Recommended Fuel: Premium Pump
Ignition Timing: 32° Total @ 4,000 rpm
Maximum Recommended rpm: 5800
Balanced: External

Rebates

$500/$750/$1000 Chevrolet Performance Rebate Visa®

Purchase a Chevrolet Performance Crate Powertrain system between January 1, 2024 and December 31, 2024 to get a Visa Prepaid Card. Must be postmarked by January 31, 2025. In order to receive the mail-in rebate debit card, qualifying purchases must satisfy the rebate requirements as outlined on this rebate application. Failure to meet the mail-in rebate requirements will disqualify your rebate. Limit one (1) rebate per service performed per service date and vehicle and cannot be assigned or transferred. This offer is void where taxed, restricted or prohibited by law.

KEY SPECS
MFG. Part #	19331579
Brand	Chevrolet Performance Parts
Crate Engine Type	Long Block
Engine Displacement	502 cu. in.
Compression Ratio	9.6:1
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	Yes
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Assembled	Yes
Cylinder Head Style	Assembled
Sold in Quantity	Each
